Key Advantages and Features of Above-Ground Insulated Integrated Wastewater Treatment Systems

I. Insulation and Cold Resistance: Suitable for Extreme Environments

• Stable operation at low temperatures: An outer insulation layer (rock wool, polyurethane, etc.) combined with an internal temperature control system ensures stable operation in temperatures ranging from -20°C to 40°C. This prevents the tank from freezing in northern winters and maintains the activity of biochemical bacteria, thereby guaranteeing that the effluent meets regulatory standards.

• Frost and Crack Protection: A fully enclosed insulated structure combined with a trace heating system prevents pipes and valves from freezing, cracking or leaking, thereby reducing operational faults during winter.

• Strong Climate Adaptability: Suitable not only for cold northern regions but also for high-altitude areas and regions with significant diurnal temperature variations, with no seasonal restrictions.

II. Easy Installation, Plug-and-Play

• No civil engineering excavation required: Can be placed directly on level ground or a concrete foundation, eliminating the need for excavation, backfilling and waterproofing works. The installation cycle is reduced by over 50% compared to buried models.

• Modular integration: The unit features a built-in insulated housing, integrating biochemical treatment, sedimentation, disinfection and insulation. Upon arrival, simply connect the inlet and outlet water lines and the power supply, and commissioning can take place on the same day.

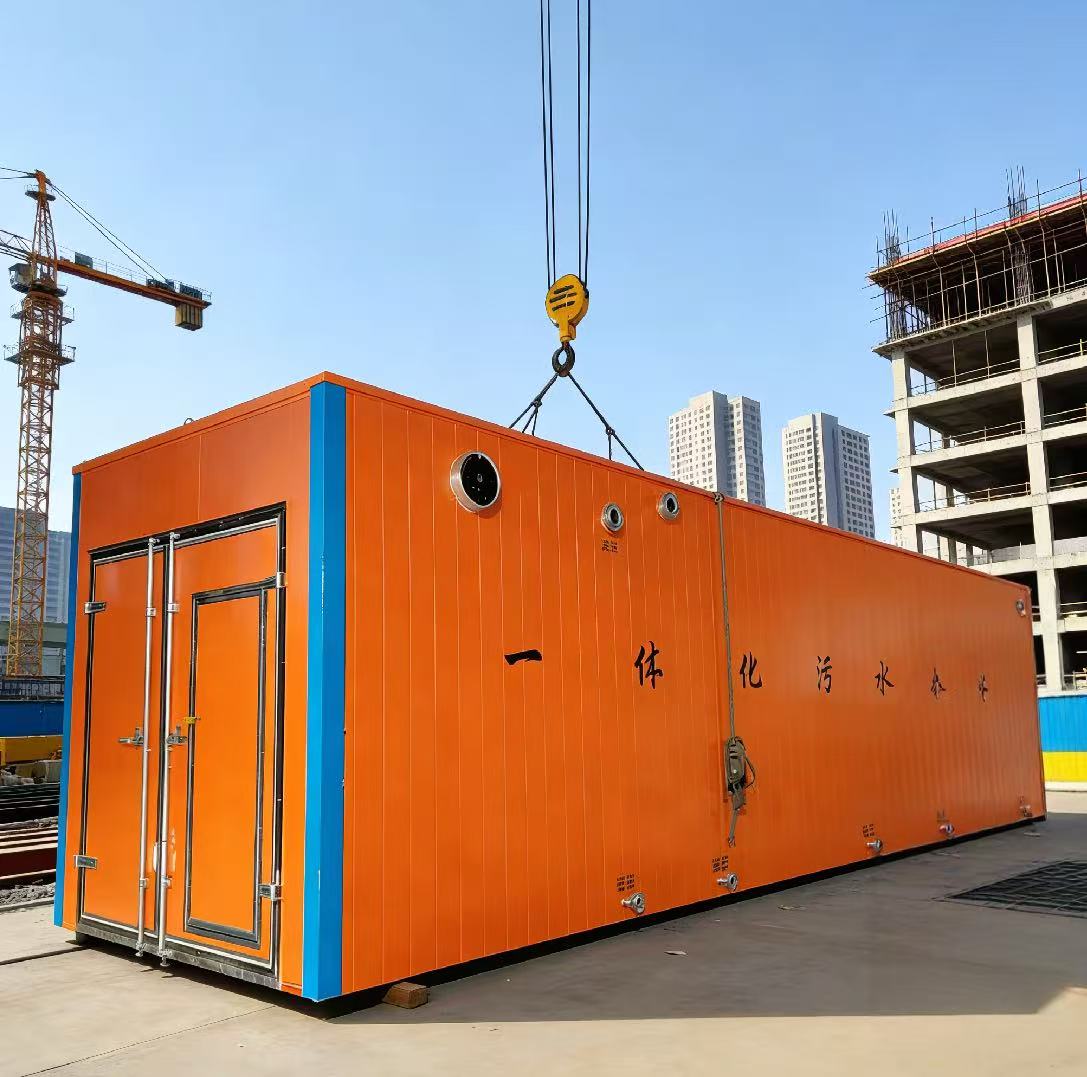

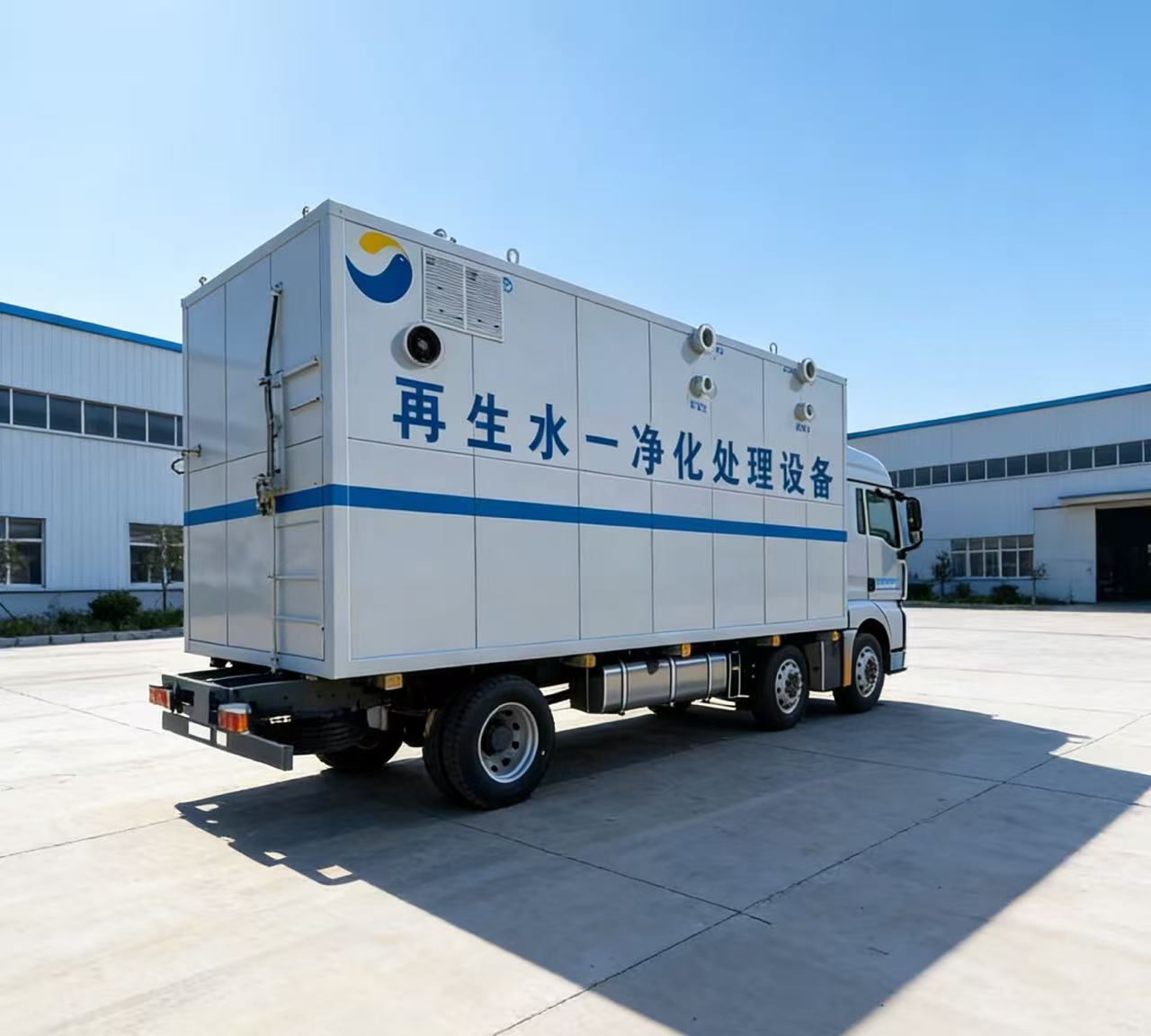

• Portable and reusable: Featuring a skid-mounted or containerised design, the unit can be transported by crane or lorry, making it suitable for temporary construction sites, emergency treatment, project relocations and similar scenarios.

III. Maintenance-friendly and longer service life

• Easy maintenance: Above-ground layout with access doors and ladders ensures all piping, valves and pump units are within sight. Routine inspections and component replacements can be carried out without entering underground chambers, ensuring safety and efficiency.

• Corrosion and Moisture Resistance: Dual protection comprising insulation and anti-corrosion topcoat effectively shields against rainwater and moisture ingress, eliminating the issues of soil corrosion and leakage common in buried systems, thereby extending equipment lifespan by 30%.

• Noise and Odour Reduction: A sealed, insulated enclosure combined with sound-absorbing insulation effectively reduces noise from fans and pumps whilst minimising odour leakage, making it ideal for locations near residential areas or industrial sites.

IV. Intelligent, Efficient and Cost-Effective

• Optimised Energy Consumption: The insulation layer minimises heat loss, whilst the integrated smart temperature control system prevents overheating, resulting in a 20–40% reduction in winter energy consumption compared to non-insulated models.

• Automated Operation: Equipped as standard with a PLC control system, enabling automatic sludge discharge, chemical dosing and temperature monitoring. Supports remote monitoring and stable operation even without on-site personnel.

• Low Maintenance Costs: The above-ground structure facilitates cleaning and maintenance, eliminating the challenges associated with underground models, such as well-based operations and leak detection. This results in lower long-term labour costs for operation and maintenance.

V. Aesthetics and Environmental Adaptability

• Aesthetics and practicality combined: Available in a range of customisable colour schemes, including blue-white and orange-grey. The unit’s sleek, flat design enhances the appearance of industrial sites, unlike fully concealed underground models.

• Flexible footprint: Installation requires no consideration of underground utilities or geological conditions; a level surface is all that is needed. Ideal for older industrial sites, temporary projects and locations with limited space.
